How Thermal Break Technology Reduces Heat Transfer

Understanding Thermal Bridging and Heat Transfer Mechanisms

The Physics of Thermal Conductivity in Building Materials

Thermal conductivity is crucial to assessing a building's energy efficiency. It's a measure of how well a material can conduct heat, denoted as watts per meter-Kelvin (W/mK). Being aware of each material's thermal conductivity is vital, as it dictates how heat transfers through building materials. For instance, metals, with their high thermal conductivity, allow significant heat flow, while materials like wood demonstrate lower conductivity, cutting down on energy wastage.

Several factors influence thermal conductivity, including temperature, moisture content, and material composition. Typically, higher temperatures or trapped moisture can elevate a material's thermal conductivity, leading to enhanced heat flow. Thus, selecting proper materials while considering these factors is pivotal to minimize energy loss.

Thermal bridging emerges when heat bypasses insulation via conductive elements like metal fasteners. Building designs plagued by thermal bridging witness considerable energy loss, diminishing efficiency. According to studies, poorly designed building envelopes can account for up to 30% of heat loss, underscoring the need for strategic material choices to prevent unnecessary energy expenditure.

How Thermal Break Technology Interrupts Heat Flow

Thermal break technology is an innovative solution that significantly reduces heat transfer through building elements. By strategically placing materials with low thermal conductivity in the paths of heat flow, these breaks act as barriers, effectively disrupting the passage of heat. This technology is especially crucial in enhancing the thermal performance of structures, contributing to substantial energy savings and increased indoor comfort.

Different materials are utilized in thermal break applications, each offering unique performance characteristics. For instance, polyamide strips are prized for their durability and resistance to mechanical stress, making them ideal for structures requiring long-term integrity. Conversely, polyurethane offers flexibility and ease of application, becoming a popular choice in existing structures' retrofits. The decision between these materials often hinges upon specific environmental conditions and building requirements.

In modern architecture, strategic incorporation of thermal break designs is common. These designs are expertly integrated into windows, doors, and other structural components to intercept heat flow. This not only mitigates thermal bridging but also boosts overall energy efficiency. Projects employing thermal break technology have demonstrated reduced energy consumption, providing pertinent examples of its incorporation in contemporary construction practices.

Core Components of Thermal Break Systems

Polyamide vs Polyurethane: Material Comparisons

Delving into the components of thermal break systems reveals that polyamide and polyurethane are foundational. Polyamide boasts impressive thermal resistance and is known for its durability, making it suitable for demanding environments. Additionally, its environmental footprint is relatively low as it's recyclable. Conversely, polyurethane offers exceptional energy efficiency thanks to its low thermal conductivity. It's also highly versatile, adapting to varied architectural needs. A recent study has demonstrated that homes employing polyurethane-based systems reduced energy consumption by up to 30%. While polyamide enjoys accolades for its strength, polyurethane shines in cost-effectiveness, lowering initial costs without sacrificing performance. Both materials significantly enhance building energy efficiency, making them integral to modern construction.

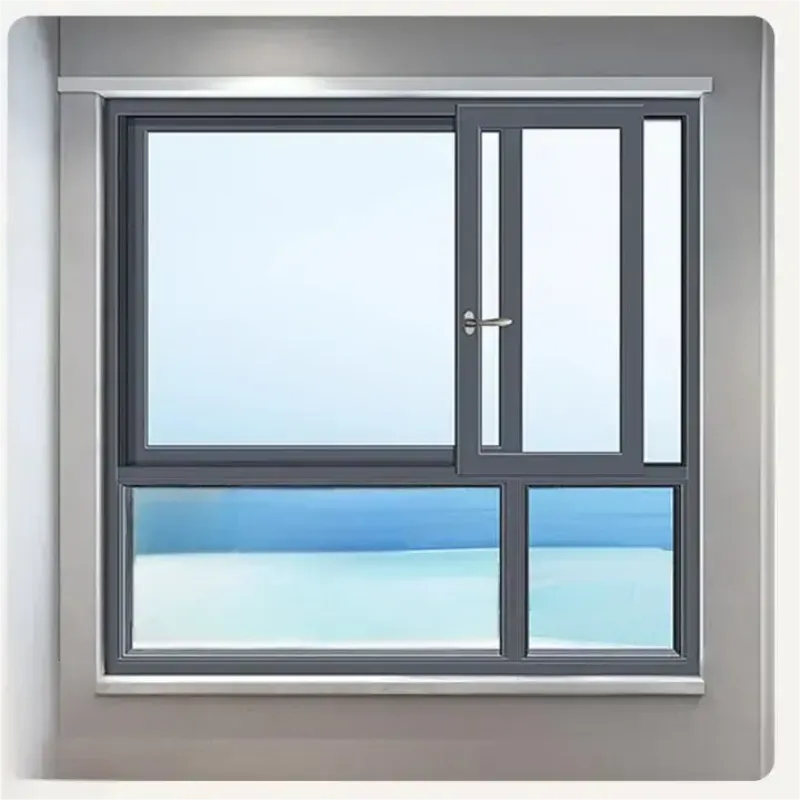

Structural Integration in Aluminum Doors/Windows

Integrating thermal breaks into aluminum doors and windows necessitates careful design consideration, as it fundamentally alters performance metrics. Key innovations include the use of thermal break technology, which significantly reduces the heat transfer inherent in metal. When implementing these technologies, factors such as the material’s alignment and precise manufacturing become paramount to ensure energy efficiency. For instance, a study on modern architectural projects revealed that buildings with thermally broken aluminum frames exhibited a 25% improvement in energy savings. Case studies consistently highlight the importance of this integration, showcasing projects where enhanced thermal performance led to improved indoor climates and reduced energy costs. Ensuring the seamless incorporation of these systems transforms aluminum into a viable option for sustainable and efficient building solutions.

Applications in Aluminum Door/Window Manufacturing

Chinese Manufacturers' Innovations in Thermal Break Profiles

Chinese manufacturers have been at the forefront of advancing thermal break profile technology, contributing significantly to the global supply chain of aluminum doors and windows. Through unique designs and material innovations, these manufacturers have addressed the critical need for energy-efficient construction solutions. For instance, recent developments have highlighted the use of advanced polyamide and polyurethane materials, which offer superior insulation properties while enhancing the durability and longevity of window and door systems. These innovations have positioned Chinese manufacturers as leaders in the industry, setting new benchmarks for performance and sustainability.

Moreover, the impact of these innovations extends beyond regional markets, influencing global supply chains by increasing energy efficiency standards in aluminum door and window manufacturing. Industry reports suggest significant energy efficiency improvements, with some projects reporting up to a 30% reduction in heat transfer due to these advanced thermal break profiles. As the demand for sustainable building solutions grows, the contributions of Chinese manufacturers offer a glimpse into the future of building energy efficiency, aligning with global environmental goals.

Case Study: Energy-Efficient Sliding Systems

In a comprehensive case study, energy-efficient sliding systems utilizing thermal break technology demonstrate remarkable improvements in building insulation and occupant comfort. These systems incorporate cutting-edge design features such as multi-chambered frames and low-emissivity glass, significantly reducing thermal bridging. The material choices, particularly the integration of reinforced polyamide thermal breaks, have been pivotal in cutting energy loss, achieving up to a 40% reduction in heat transfer compared to standard systems.

Performance results from the case studies underscore these systems' effectiveness, with energy savings percentages providing a clear testament to their value. Customers who have adopted these sliding systems consistently express high satisfaction levels, citing enhanced comfort and noticeable reductions in heating and cooling costs. Testimonials indicate that post-installation, homeowners and facility managers have experienced not only immediate energy savings but also long-term cost benefits, reinforcing the importance of incorporating thermal break technology in modern construction practices.

Structural Engineering Applications

Steel-to-Concrete Thermal Break Solutions

Thermal bridging in steel-to-concrete connections poses a critical challenge in maintaining building energy efficiency. The juncture where steel and concrete meet can act as a significant pathway for heat transfer, potentially leading to energy loss. To address this, effective thermal break solutions become essential. Engineering strategies often incorporate the use of materials with low thermal conductivity between the steel and concrete to mitigate this issue. By integrating advanced thermal break technology, such as polyamide strips, engineers can significantly reduce heat exchange.

One promising approach is the inclusion of specialized designs that leverage these materials to create effective barriers. For instance, proprietary thermal breaks have been utilized in large-scale construction projects, demonstrating improved energy performance and structural integrity. A notable example involved the successful installation of these solutions in a commercial high-rise, resulting in a remarkable 28% decrease in heating requirements. These implementations underscore the importance of innovative materials and design strategies in overcoming thermal bridging challenges.

Balcony Slab Isolation Techniques

Isolating balcony slabs is crucial to prevent thermal bridging and improve overall energy efficiency in building structures. Balcony slabs can become significant heat conduits due to their direct exposure to external environments. To combat this, specialized techniques and materials are employed. Using high-performance insulation materials and thermal break pads can effectively minimize heat flow between the interior and exterior environments.

These methods adhere to stringent industry standards and guidelines, ensuring that energy performance specifications are consistently met. For example, projects that employed ceramic or composite thermal break layers reported improved energy conservation and internal comfort. The use of such advanced materials not only enhances thermal performance but also complies with regulatory requirements, such as Part L of the UK's Building Regulations, aimed at reducing energy consumption and emissions.

These isolation techniques emphasize not only energy efficiency but also durability and compliance, highlighting their vital role in modern building practices. As these methods continue to evolve, they offer promising pathways to achieve sustainable and energy-efficient architectural solutions.

Quantifying Energy Efficiency Improvements

Reducing HVAC Loads Through Thermal Break Implementation

Innovative thermal break technology plays a crucial role in reducing HVAC loads in both residential and commercial buildings. By minimizing the rate of heat transfer, thermal breaks significantly decrease energy losses through the building envelope, culminating in energy savings. According to a report by the U.S. Department of Energy, buildings equipped with advanced thermal breaks can reduce their energy consumption by up to 20%. For example, a case study from a commercial office building in Boston noted a 15% reduction in HVAC energy usage, attributable to quality thermal break technologies. Proper installation of these thermal breaks is essential to maximize their benefits, ensuring continued energy efficiency and reduced operational costs.

30% Energy Savings: Verified Case Studies

Several projects have demonstrated energy savings of over 30% using thermal break systems. A notable instance is a multi-family residential complex in Los Angeles, which reduced its energy consumption by 32% post-installation of thermal break windows. The energy performance metrics revealed a dramatic drop from an initial 150 kWh/m²/year to 102 kWh/m²/year. Occupants reported increased thermal comfort, while building managers noted significant operational cost reductions. Such dramatic improvements in energy performance underscore the profound impact of thermal break systems on sustainability and the financial feasibility of building operations.

Compliance and Certification Requirements

Meeting IECC Thermal Performance Standards

The IECC (International Energy Conservation Code) outlines crucial thermal performance standards to guide the development and implementation of energy-efficient building systems. These standards play a significant role in shaping design and construction practices within the industry by setting minimum requirements for building envelope improvements such as insulation, window performance, and air sealing. Compliance with the IECC standards ensures that buildings maximize energy efficiency, providing a balanced indoor climate while minimizing energy consumption. However, manufacturers and builders often encounter challenges in meeting these stringent standards, such as the need for high-quality materials and advanced technology integration like thermal breaks. Solutions include adopting cutting-edge manufacturing processes and enhanced training for builders to ensure proper installation and compliance.

LEED Credits Through Thermal Break Integration

Incorporating thermal break technology into building designs can significantly contribute to achieving LEED (Leadership in Energy and Environmental Design) credits. These credits are awarded across various categories, with particular emphasis on energy efficiency and sustainable design practices. Thermal breaks are particularly relevant in categories like "Energy & Atmosphere," where they help reduce energy consumption, and "Materials & Resources," due to their ability to enhance thermal performance with environmentally friendly materials. Projects that integrate thermal break systems, such as high-performance glazing systems combined with thermal efficiency enhancements, often successfully gain LEED certification. Such initiatives not only minimize the environmental footprint but also improve overall building comfort, which is a critical goal in sustainable construction endeavors.

FAQ

What is thermal conductivity and why is it important in building materials?

Thermal conductivity measures how well a material can conduct heat. It is crucial in assessing building energy efficiency because it affects how heat transfers through materials, impacting energy wastage and conservation.

How does thermal bridging affect a building's energy efficiency?

Thermal bridging occurs when heat bypasses insulation through conductive elements, leading to significant energy loss and reduced efficiency. Proper design and material choices can minimize these effects and improve energy conservation.

What materials are commonly used in thermal break technology?

Polyamide and polyurethane are commonly used in thermal break technology. Polyamide is known for its durability and low environmental footprint, while polyurethane offers flexibility and exceptional energy efficiency.

How can thermal break technology improve HVAC efficiency?

By reducing the rate of heat transfer through building envelopes, thermal breaks decrease energy losses, thereby reducing HVAC loads and increasing overall energy savings in buildings.

How does thermal break technology contribute to LEED certification?

Thermal break technology can help achieve LEED credits by enhancing energy efficiency and using environmentally friendly materials, fulfilling criteria in categories like "Energy & Atmosphere" and "Materials & Resources."
