Place of Origin: |
Shanghai China |
Brand Name: |
PEAK |
Model Number: |
Smart Lift Window - 120 Series |
Certification: |
Minimum Order Quantity: |
10m2 |
Price: |
Quote according to specific configuration |
Packaging Details: |
Pearl-cotton wrapping & wooden frames |
Delivery Time: |
|
Payment Terms: |
50% deposit, balance before shipment |
Supply Ability: |
Description:
The Smart Lift Window - 120 Series is a cutting-edge solution designed for modern architecture, combining durability, energy efficiency, and intelligent functionality. Constructed from 6063-T5 aviation-grade aluminum alloy, this series ensures structural integrity and longevity. The window features 5+16A+5 double-glazed glass as standard (or optional 5+0.76A+5 laminated glass), providing excellent thermal insulation and noise reduction. Its flip-top design allows easy maintenance and installation, while the interactive lift electric roller screen seamlessly integrates mosquito netting with glass panels.
Applications:

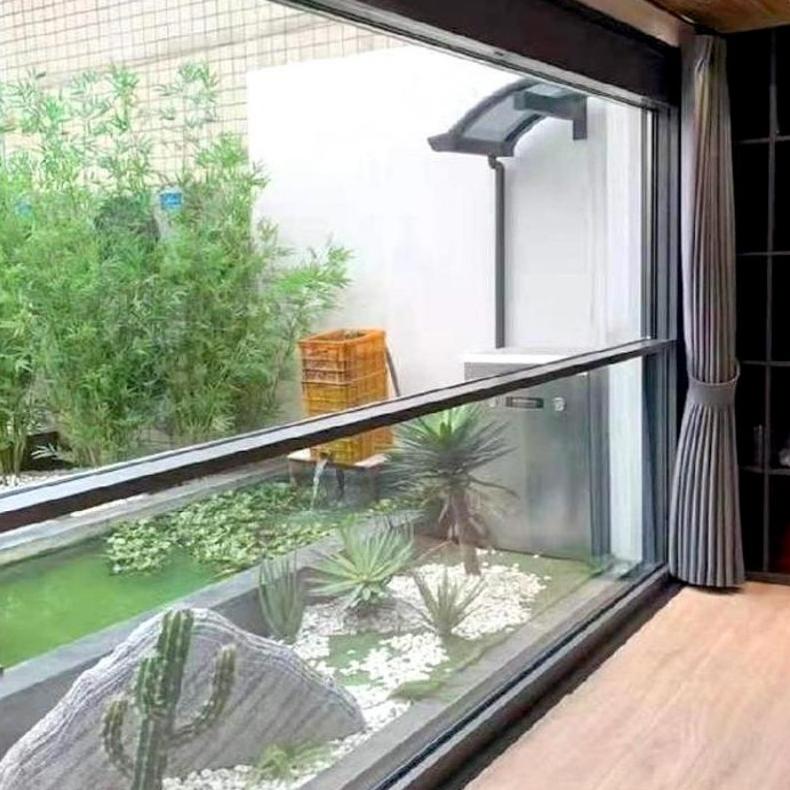

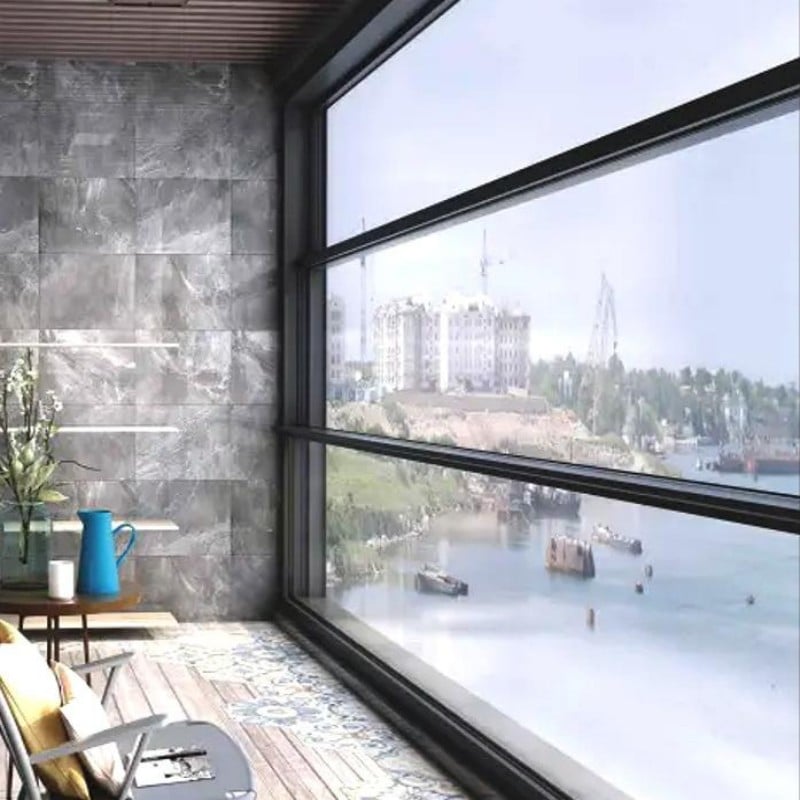

Balcony, Living Room, Bedroom, Kitchen, Sunroom.
Specifications:

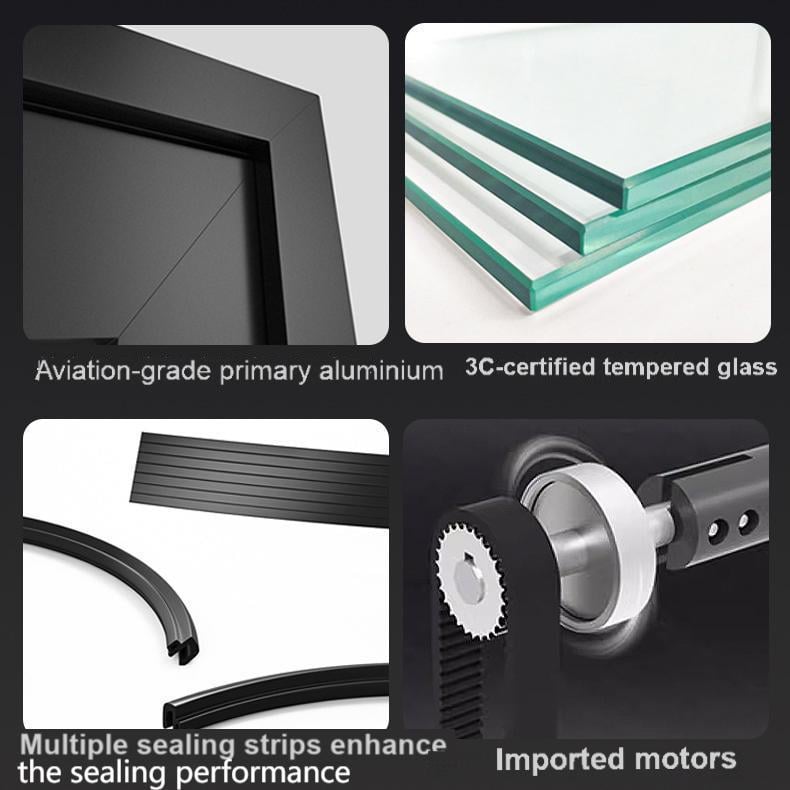

Aluminum Material |
6063-T5 aviation-grade aluminum alloy |
Glass |
Standard: 5+16A+5 double-glazed glass Optional: 5+0.76A+5 laminated glass |
Hardware |
Mitsubishi motor (1 unit), built-in reducer, receiver (1), counterweight rods (2), transmitter (1), 316 stainless steel drive tube (1), motor brackets (1), infrared anti-pinch sensors (1), bearing rods with guide wheels (4 sets) |
Configuration |

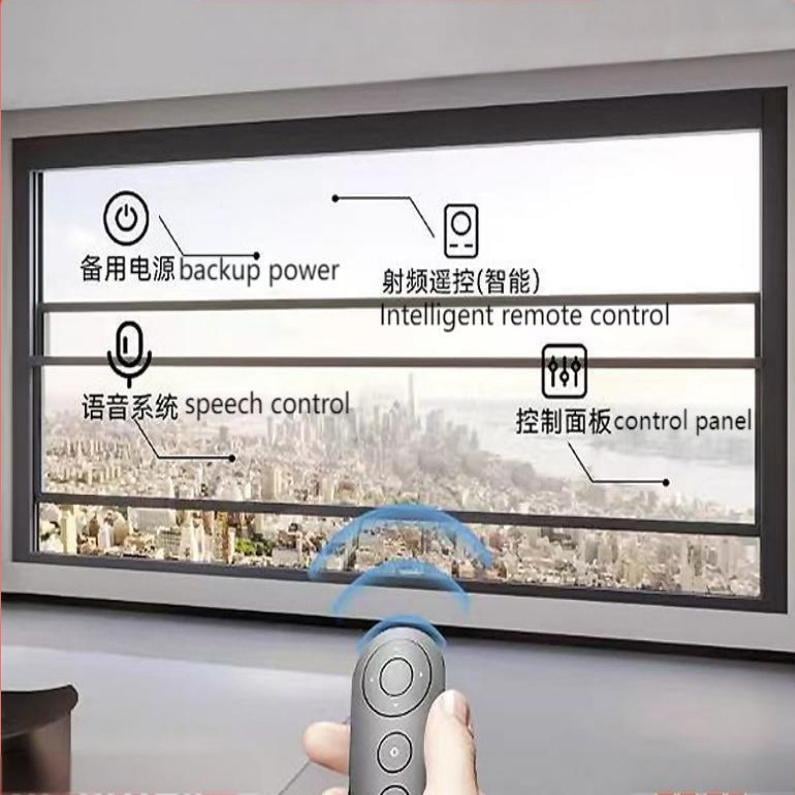

Standard: Rain sensor, infrared anti-pinch sensors, wired control panel, remote control Optional: Voice control system, backup power supply |
Color Options |
Metallic Gray, Metallic Brown |
Performance |
Thermal insulation: Grade 5 Noise reduction: Grade 3 Water resistance: Grade 5 Air tightness: Grade 8 Wind pressure resistance: Grade 9 |
Dimensions |

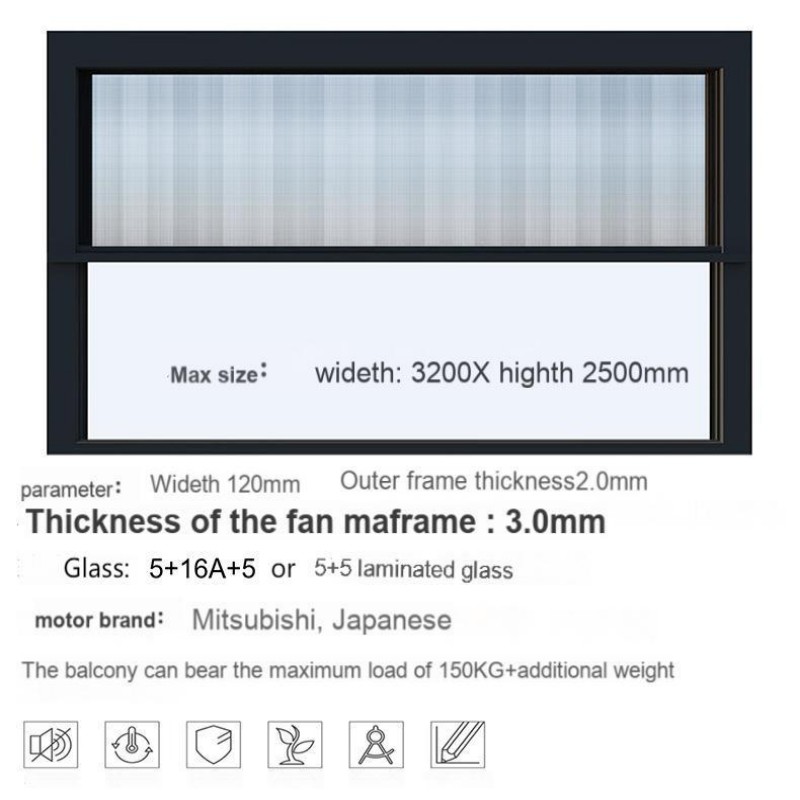

Max size: 3200mm (W) × 2500mm (H) Wall-facing width: 120mm; Frame thickness: 2.0mm; Sash thickness: 3.0mm |
Competitive Advantage:
Safety & Reliability: Reinforced 6063-T5 aviation-grade aluminum alloy and infrared anti-pinch sensors ensure user safety and structural durability.
Ultra-Quiet Operation: Precision-engineered hardware (e.g., Mitsubishi motor, reducer) and Grade 3 noise reduction minimize operational noise.
Thermal Insulation: Double-glazed glass and Grade 5 thermal insulation maintain indoor temperature stability, reducing energy costs.
Durability: High-performance hardware (316 stainless steel drive tubes, corrosion-resistant bearings) and Grade 9 wind pressure resistance guarantee longevity in harsh conditions.
Eco-Friendly Design: Energy-efficient materials and optional voice control systems reduce environmental impact.
Aesthetic Craftsmanship: Mid-narrow visible frame and sleek color options (Metallic Gray/Brown) blend seamlessly with modern architecture.
Customizable Functionality: Optional upgrades like backup power and APP/voice control cater to diverse user needs.
