Smart Lift Window - DF165 Series

Introduction

Place of Origin:

Shanghai China

Brand Name:

PEAK

Model Number:

Smart Lift Window - DF165 Series

Certification:



Minimum Order Quantity:

3m2

Price:

Quote according to specific configuration

Packaging Details:

Pearl-cotton wrapping & wooden frames

Delivery Time:



Payment Terms:

50% deposit, balance before shipment

Supply Ability:

Description:

The PEAK Smart Lift Window series effectively addresses the shortcomings of conventional fixed windows (limited ventilation) and sliding windows (poor aesthetics and security). It delivers motorized, intelligent operation and maximum ventilation, restoring the balcony's full functionality. Key features include an auto-adjusting lifting system with rain/wind sensor, preset height stops, and infrared anti-pinch protection, making it a safe, lightweight, smart, and practical solution.

Engineered for expansive, unobstructed panoramic views, it achieves up to 50% maximum ventilation opening area. The opening is equipped with a motorized insect screen. Standard features include: Active Smart Rain Sensor; Infrared Anti-Pinch Sensor; Closable Screen for Anti-Climbing; Child Lock on Control Panel; Emergency Backup Power; Emergency Manual Drive. Enhanced safety and convenience come with adjustable ambient lighting, an LCD control panel, and seamless smart home integration. Remote control is available via a dedicated mobile app.

PEAK commits to using premium raw materials, high-quality motors, stable intelligent control systems, superior manufacturing, meticulous installation, and ongoing maintenance support with online technical services, ensuring user peace of mind.



Applications:

Large Flats, villas, private residences, office buildings, resorts, hotels, clubhouses.



Specifications:

Aluminum Alloy

6063-T5 (Liquid-cooled process)

Profile Wall Thickness

Main Frame: 2.0-2.5mm; Lifting Sash: 5.0mm

Surface Treatment

Fluorocarbon Spray Coating (FEVE)

Standard Color

Shiny Silver Metallic Grey; (Custom colors available)

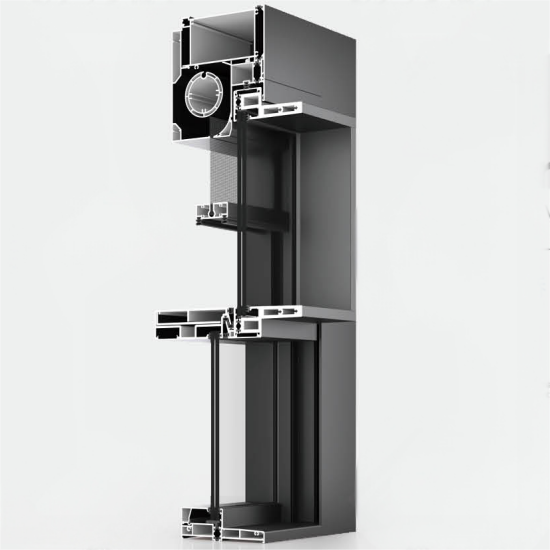

Product Structure

Integrated Lifting Glass Sash / Windproof & Insect Screen

Screen Motor

DOOYA Tube Motor

Glass Sash Motor

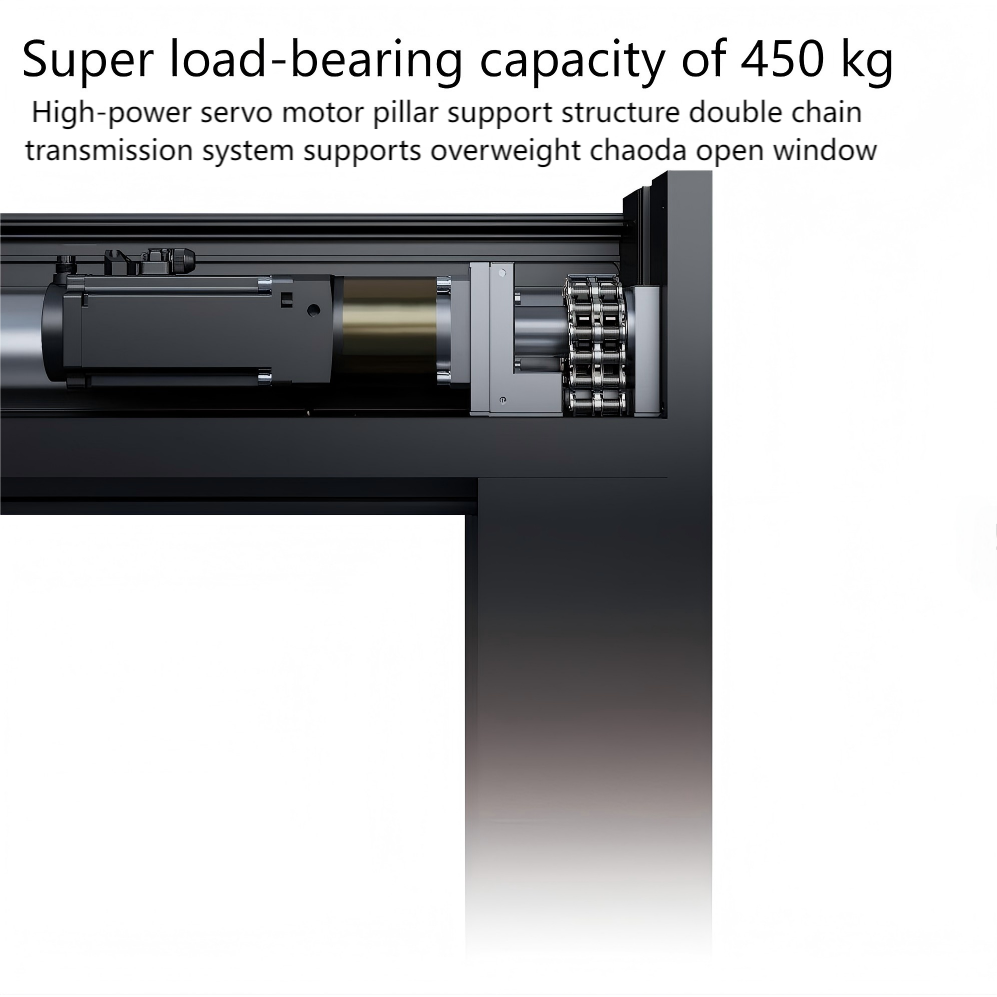

DF80 Heavy-Duty Servo Motor / Dual Motor Configuration

Applicable Dimensions

Width: 3500mm-4800mm; Height: 1800mm-2600mm

Standard Glazing

10mm + 2.28PVB + 10mm Laminated Tempered Glass / 10mm Low-E + 16mm Air Gap + 10mm Tempered Insulated Glass

Standard Features

LCD Control Panel, Remote Control, Rain Sensor, Smart Anti-Pinch Sensor, Mobile APP, AI Smart Voice Control, Ambient Lightin





Competitive Advantage:

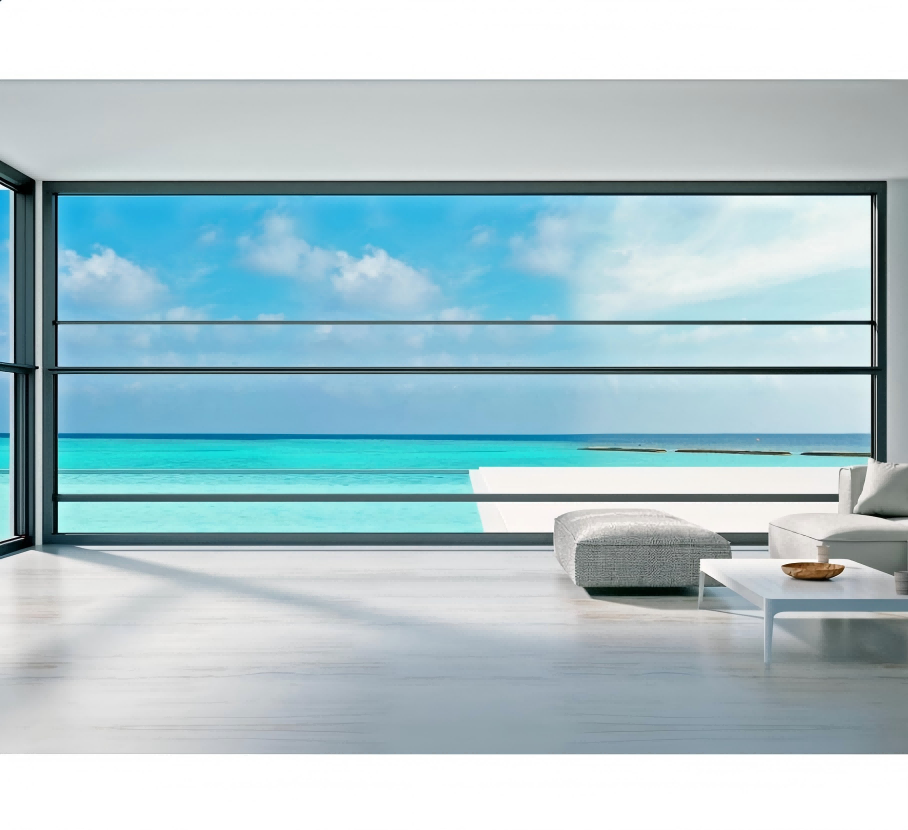

Aesthetic Design: Minimalist frame maximizes panoramic views. Two-stage lift achieves 50% opening for optimal view & ventilation.

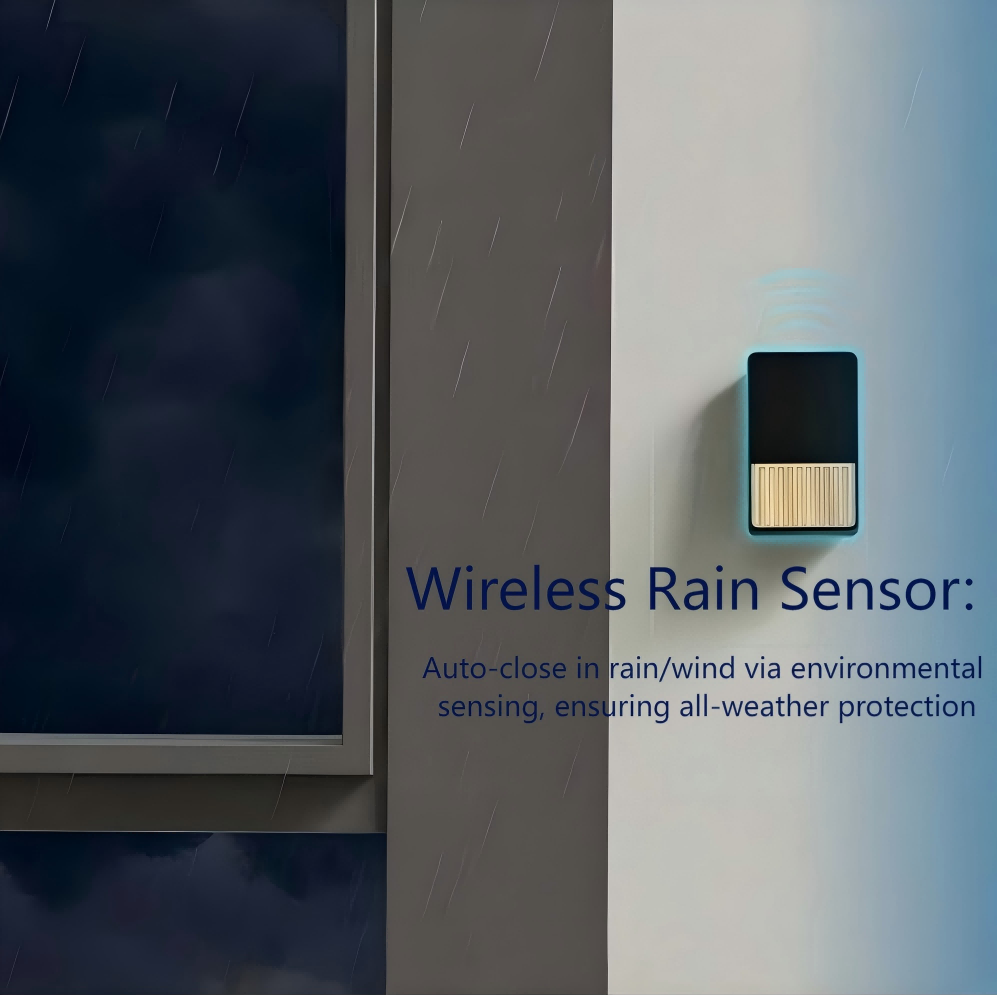

Wireless Rain Sensor: Auto-close in rain/wind via environmental sensing, ensuring all-weather protection.

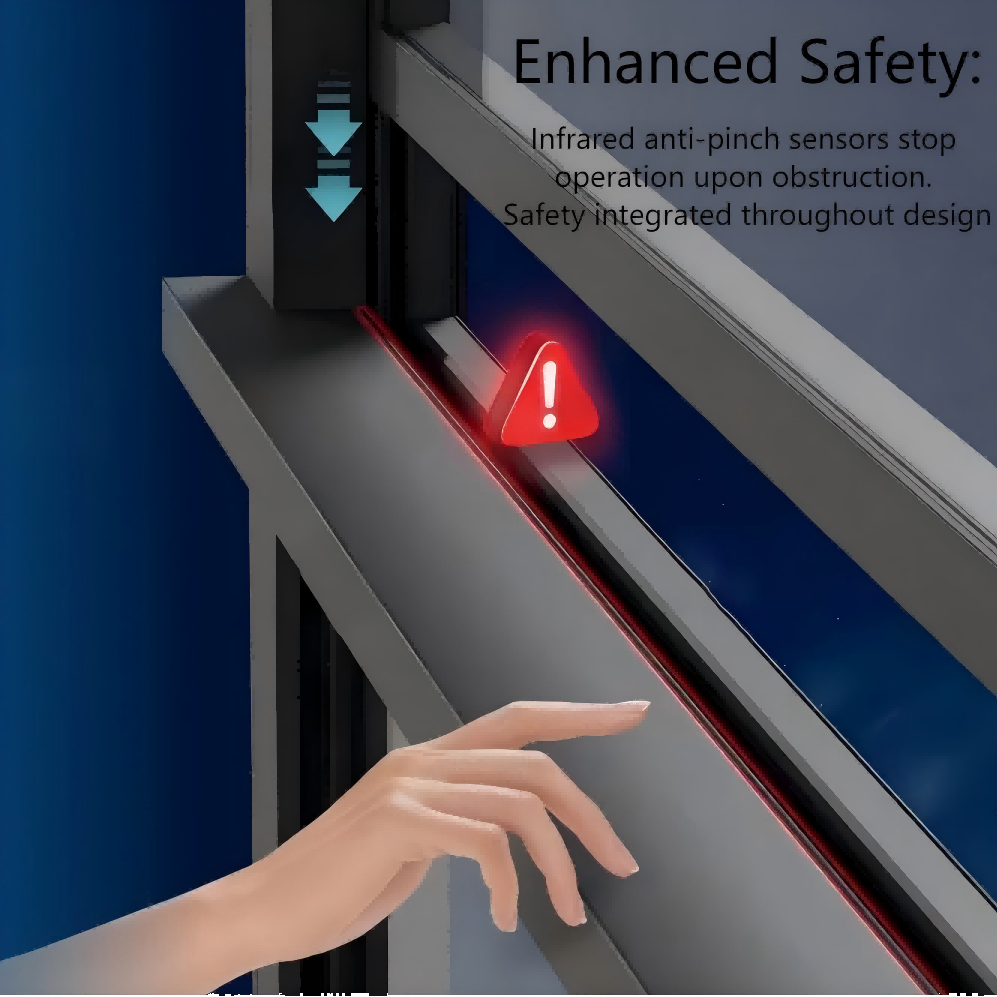

Enhanced Safety: Infrared anti-pinch sensors stop operation upon obstruction. Safety integrated throughout design.

Impact & Quake Resistance: Supports laminated, insulated, Low-E, or ultra-clear glass for superior durability.

Wind & Corrosion Resistance: Curtain wall standards, frame-encased sash, reinforced profiles (up to 5.0-8.0mm) boost structural integrity.

Smart Control: LCD touch panel, AI voice, APP, weather forecast, rain sensor, remote - comprehensive control options.

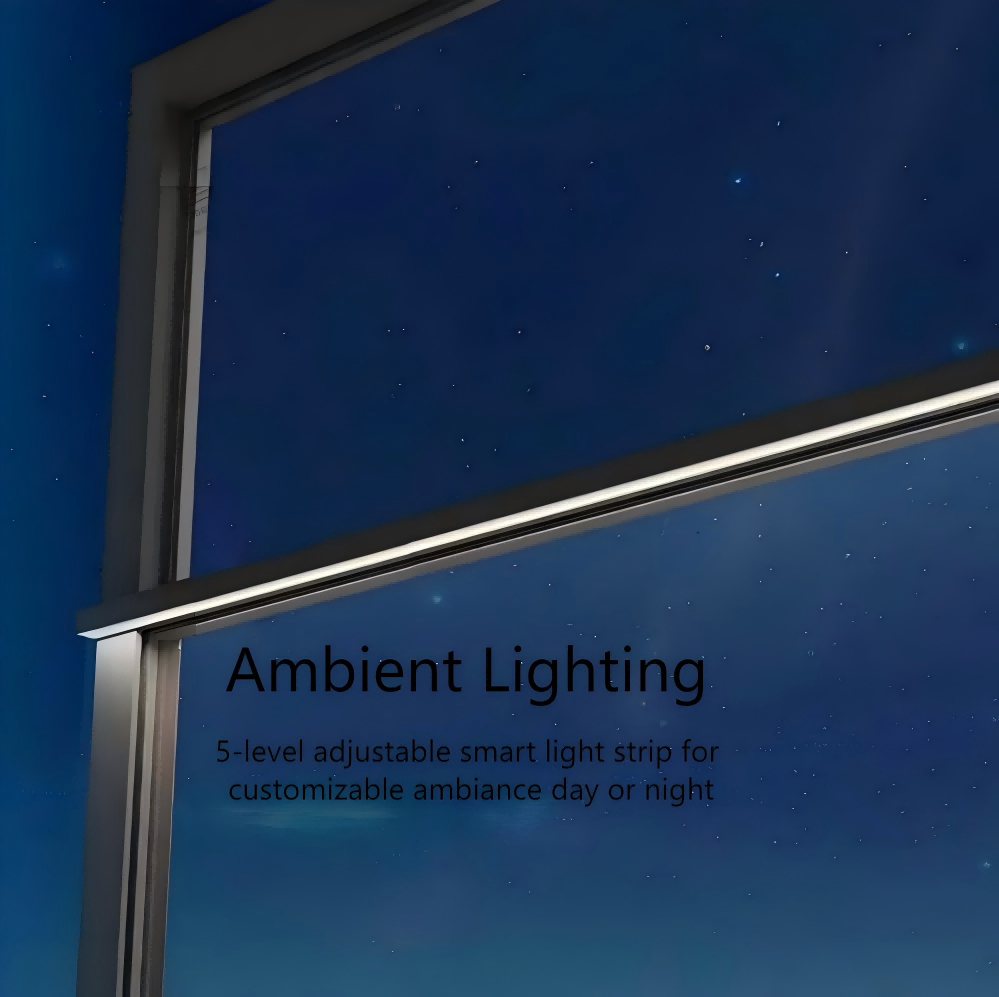

Ambient Lighting: 5-level adjustable smart light strip for customizable ambiance day or night.

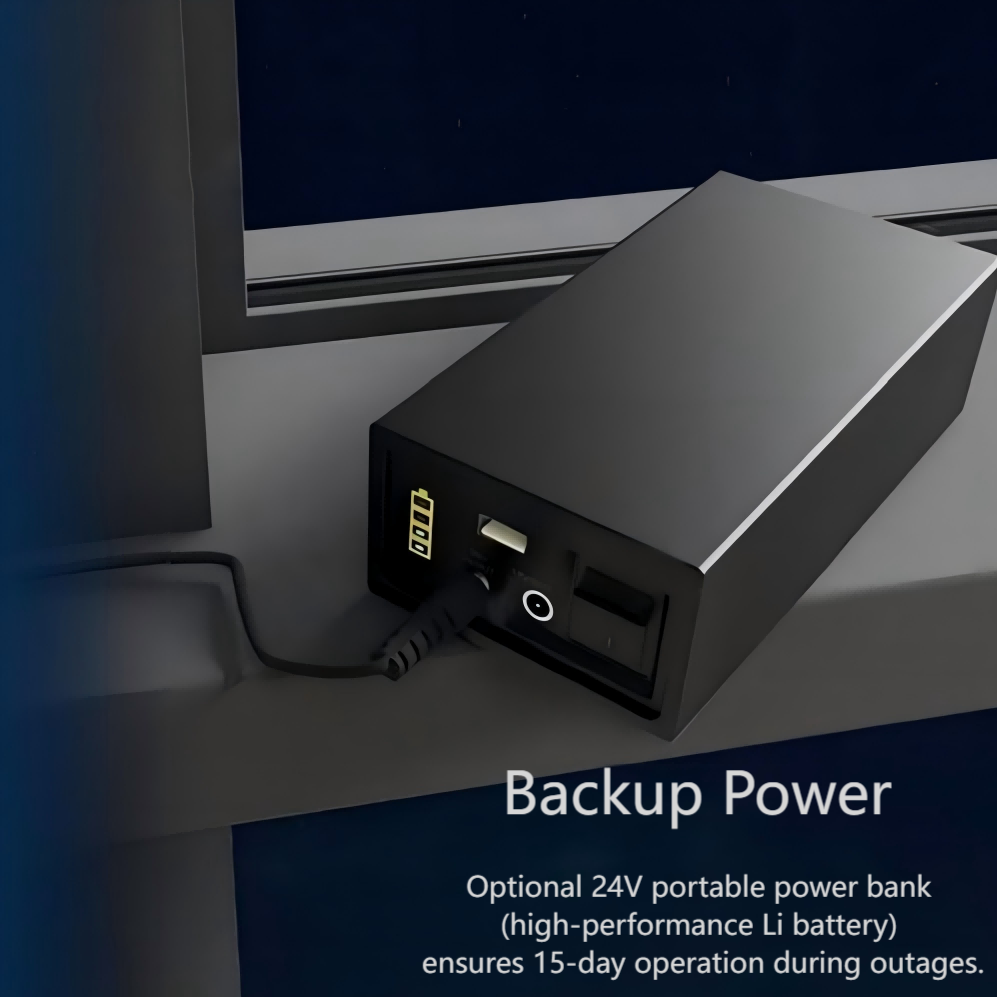

Backup Power: Optional 24V portable power bank (high-performance Li battery) ensures 15-day operation during outages.

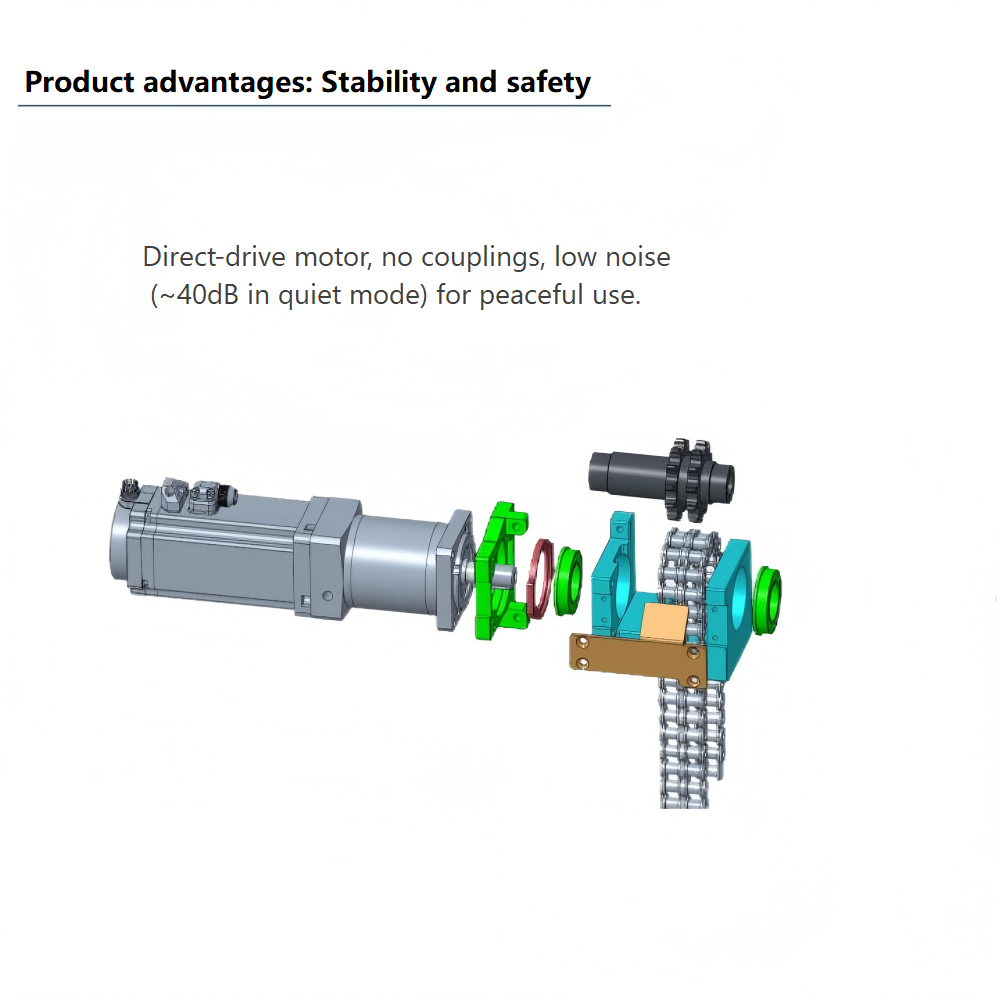

Quiet Operation: Direct-drive motor, no couplings, low noise (~40dB in quiet mode) for peaceful use.

Easy Maintenance: Modular design, top access for motors, side-mounted sprocket components, and control panel simplify servicing.
